ASP.NET Web Pages - Folders

This chapter is about folders and folder paths.

In this chapter you will learn:

• About Logical and Physical folder structures
• About Virtual and Physical names
• About web URLs and Paths

Logical Folder Structure

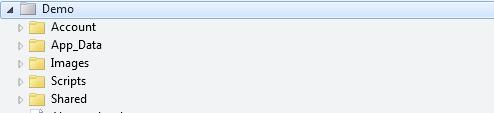

Below is a typical folder structure for an ASP.NET web pages web site:

• The "Account" folder contains logon and security files
• The "App_Data" folder contains databases and data files
• The "Images" folder contains images
• The "Scripts" folder contains browser scripts
• The "Shared" folder contains common files (like layout and style files)

Physical Folder Structure

The physical structure for the "Images" folder at the website above might look like this on a computer:

C:\Johnny\Documents\MyWebSites\Demo\Images

Virtual and Physical Names

From the example above:

The virtual name of a web picture might be "Images/pic31.jpg".

But the physical name is "C:\Johnny\Documents\MyWebSites\Demo\Images\pic31.jpg"

URLs and Paths

URLs are used to access files from the web: https://www.w3schools.com/html/html5_intro.asp

The URL corresponds to a physical file on a server: C:\MyWebSites\w3schools\html\html5_intro.asp

A virtual path is shorthand to represent physical paths. If you use virtual paths, you can move your pages to a different domain (or server) without having to update the paths.

The root on a disk drive is written like C:\, but the root on a web site is  / (forward slash).

The virtual path of a web folder is (almost) never the same as the physical folder.

In your code you will, reference both the physical path and the virtual path, depending on what you are coding.

ASP.NET has 3 tools for working with folder paths: the ~ operator, the Server.MapPath method, and the Href method.

The ~ Operator

To specify the virtual root in programming code, use the ~ operator.

If you use the ~ operator, instead of a path, you can move your website to a different folder or location without changing any code:

The Server.MapPath Method

The Server.MapPath method converts a virtual path (/default.cshtml) to a physical path that the server can understand (C:\Johnny\MyWebSited\Demo\default.cshtml).

You will use this method when you need to open data files located on the server (data files can only be accessed with a full physical path):

You will learn more about reading from (and writing to) data files on the server in the next chapter of this tutorial.

The Href Method

The Href method converts a path used in the code to a path that the browser can understand (the browser cannot understand the ~ operator).

You use the Href method to create paths to resources like image files, and CSS files.

You will often use this method in HTML <a>, <img>, and <link> elements:

The Href method is a method of the WebPage Object.
